Custom Wedge Wire Flat Screen for Industrial Filtration

A Pakistani trading company serving the sugar, starch and industrial filtration sectors required a customized wedge wire flat screen for its project supply business. The product was manufactured according to the confirmed material, slot opening, panel dimensions and wedge wire structure.

The flat screen was constructed with wedge-shaped surface wires welded across support rods to form continuous and evenly arranged slot openings. The profile wire and support rod combination was selected according to the confirmed technical requirements.

Before packing, the material, slot opening, overall dimensions, panel thickness and support rod details were checked. These inspections helped verify that the completed wedge wire flat screen corresponded with the specifications confirmed for the order.

• Product: Wedge wire flat screen
• Material: SS 304
• Slot: 0.5 mm
• Screen wire: 2 × 4 mm
• Support wire: 4.2 × 6.5 mm
• Size: 457.2 × 457.2 mm
• Quantity: 10 pcs
• Order code: 8128

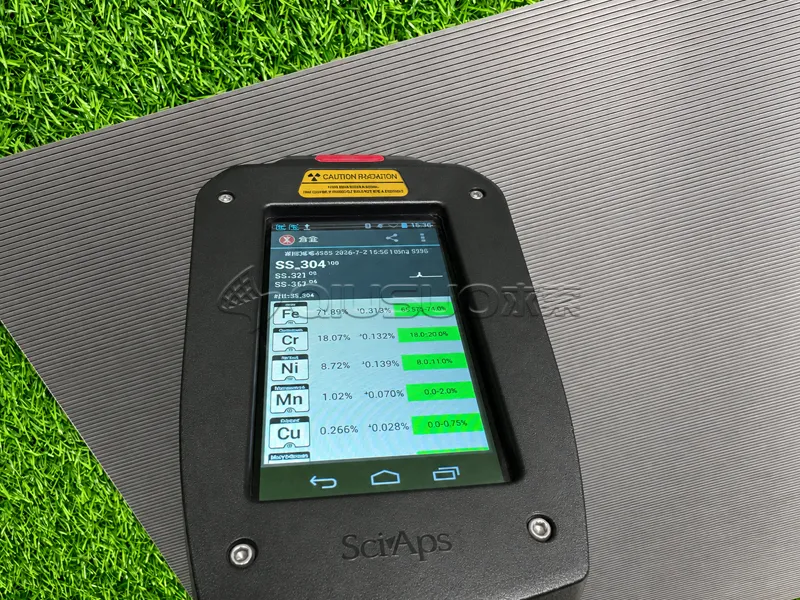

Material inspection

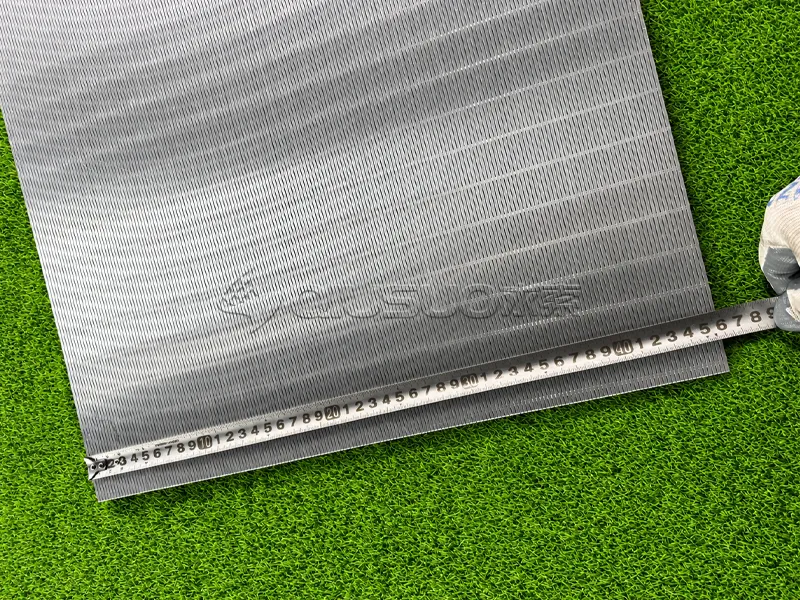

Width measurement

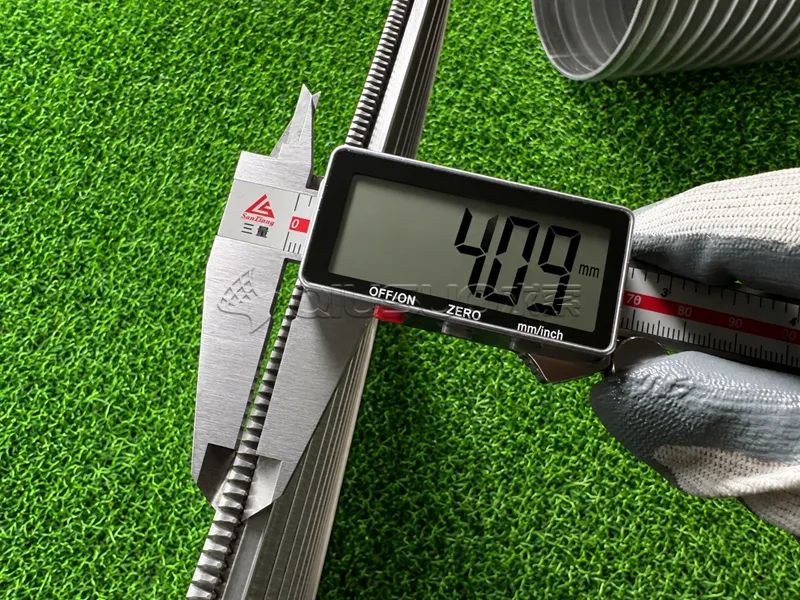

Thickness measurement

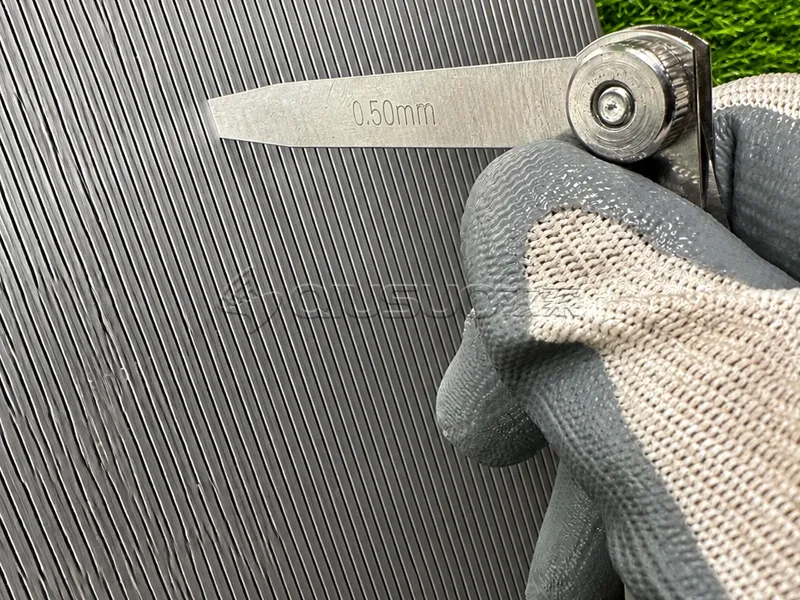

Slot opening detection
