Home Products Wedge Wire Lateral Assemblies

Wedge Wire Lateral Assemblies Ensure the Filtration Accuracy of the Equipment

Wedge wire screen laterals assemblies are vessel internals, consist of hub steel pipe with a screen laterals, which can efficiently collect or distribute liquid/gas while preventing the medium from flowing out.

Wedge Wire Screen Lateral Assemblies, also called Under Draining Filtering, water distributor, medium collector.

We can design wedge wire screen laterals assemblies according to Vessel/Filter size, flange size, flow rate, medium sizes.

At the same time, the middle row device of the wedge wire screen laterals assemblies can be made according to the requirements of a variety of shapes, such as ordinary radial type, fishbone type, T-type,etc.The size of the laterals branch pipe and the hub master pipe can also be designed and produced according to the requirements of customers.

Wedge wire screen laterals assemblies widely used in ion exchange, clay and sand filtration, carbon towers and power plant water systems and other equipment.

RFQ Form

Data Sheet

A perspective view of four different wedge wire screen laterals placed inside the tank against a black background.

- QIUSUO Wedge Wire Lateral Assemblies

Technical Information

The dimensions of our products can be customized according to the design and purchasing needs of our customers.

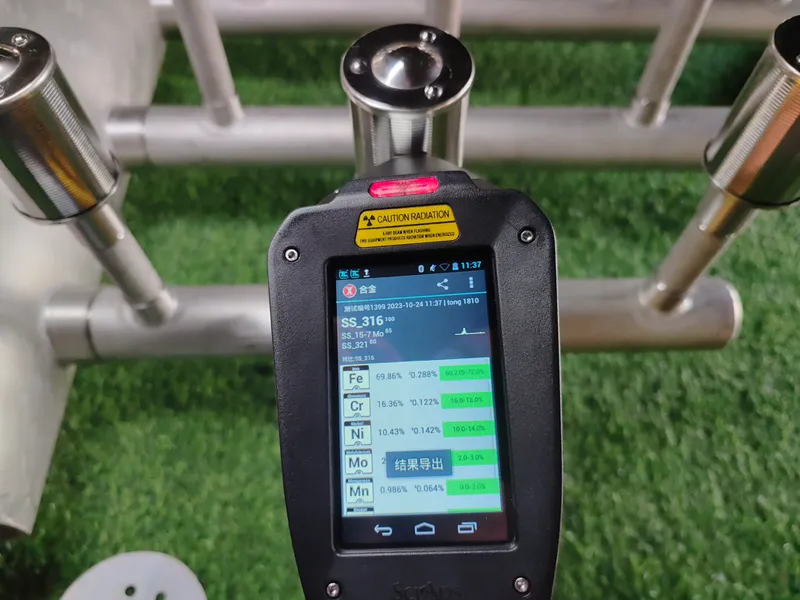

Material grade:
- Stainless steel 304/316L/321/904L
- Duplex steel 2205
- Super duplex steel 2507
- Hastelloy C276
- Titanium alloy TA2
Filtration accuracy: Screen slots 0.1–1.0 mm (Mesh18 – Mesh150)
Screen or Pipe Lateral: Whether Perforated pipe based in screen laterals, or other special design.
Laterals joint type:
- standard thread
- fabricated flanges
- fully welding types
Header or Hub connection size: Available in both header-lateral and hub-lateral assemblies, the size is 2"SCH40, 3"SCH40, 4"SCH40, 6"SCH40, 8"SCH40 and etc.
Header or Hub connection type: flange (RF/SO), flange (blind), flange (socket), flange (ANSI), flange (custom), coupling, threaded end or others
Header or Hub Coupling orientation: angled (please insert angle degree if known), Perpendicular to hub
Lateral Assembly Qty.:
- One row, two rows or three rows.
- Numbers wedge wire screen Lateral
Max flow: GPM
Vessel size: Vessel size, better providing the vessel drawings
Assemblies Pattern:
- Ordinary radial
- Fishbone
- T-type
Applications & usages: Advise us more information is helpful.
Surface Treatment: passivation, pickling, stress relieving, polishing, chrome plating

Category

We offer various types of screen laterals and hub and header lateral assemblies for your option or customize according to your specific needs.

Screen Laterals

Screen laterals are key components of wedge wire screen lateral assemblies. Multiple screen laterals are typically connected through hubs or headers by using threaded or flange connections. Screen laterals are primarily made of wedge wire screen tubes and can also be made of perforated steel tubes inside the wedge wire screen tubes. Different component designs of screen laterals allow the lateral assemblies to adapt to different applications and tanks.

Threaded ending wedge wire screen lateral

A flange ending wedge wire screen lateral on the white background.

Flange connection wedge wire screen lateral

Threaded ending wedge wire screen lateral with a perforated metal tube

A flange ending wedge wire screen lateral with a perforated metal tube

Flange connection wedge wire screen lateral with a perforated metal tube

Table 1: Common Used Wedge Wire Screen Laterals Specifications
No.	Screen Diameter	Screen Slots	Reinforced Perforated Pipe	Joint type	Related Standards
1	30 mm	0.2 /0.3 / 0.5 / 1 mm	1/2" Sch40, DN15 × 2.5	thread pipe joints 1/2", G15	ANSI/ASME B1.20.1. ASME B16. 5 GB/T 29168
2	38 mm	0.2 /0.3 / 0.5 / 1 mm	3/4" Sch40, DN20 × 3	thread pipe joints 3/4", G20,
3	45 mm	0.2 /0.3 / 0.5 / 1 mm	1" Sch40, DN25 × 3.5	thread pipe joints 3/4", 1", G20, G25
4	50 mm	0.2 /0.3 / 0.5 / 1 mm	1-1/4" Sch40, DN32 × 3.5	thread pipe joints 3/4", 1", G20, G25
5	57 mm	0.2 /0.3 / 0.5 / 1 mm	1-1/2" Sch40, DN40 × 4	thread pipe joints 1", 1-1/4", 1-1/2", G25, G32, G40
6	76 mm	0.2 /0.3 / 0.5 / 1 mm	2" Sch40, DN50 × 4	flange 2", DN50
7	105 mm	0.2 /0.3 / 0.5 / 1 mm	3" Sch40, DN80 × 5.5	flange 3", DN80
8	130 mm	0.2 /0.3 / 0.5 / 1 mm	4" Sch40, DN100 × 6	flange 4", DN100
Notes: Wedge Wire Screen Laterals for water inlet device comes in various forms cross type,multi-branch type, straight pipe type, etc. Special specifications are processed and produced according to the user's requirements. We offer perforated pipes interiors the wedge wire screen tube that can withstand high pressure. Material grade 304, 304L, 321, 316L, 310S, 904L, C276, S32205, S32750, Titanium Gr.2

Hub and Header Lateral Assembly

Wedge wire screen laterals assemblies are divided into hub lateral assembly and header lateral assembly based on their installation position and function within the tank.

Hub lateral assembly is used at the top or bottom of the tank. Its main role is to distribute and collect liquids at the equipment outlet.
Header lateral assembly is used in the middle section of the tank to ensure even distribution and discharge of liquids while preventing media from flowing out.
Hub and header laterals assemblies come in various shapes, including radial type and fish spike type. We can design and manufacture wedge wire lateral assemblies with different main pipe diameters and lateral quantities according to customer requirements.

Hub Radial Lateral Assembly
Hub fish spike Lateral Assembly
Header Lateral Assembly

Hub Radial Lateral Assembly

Hub radial lateral assembly consists of a central hub and several screen laterals. It is typically installed at the top or bottom of the vessel. It commonly works as hub-lateral distributor at the top of the tank for liquid distribution and serves as hub-lateral collector at the bottom of the tank for liquid collection. Especially in radial flow equipment such as centrifuges, hub radial lateral assembly ensures uniform distribution or concentrated collection of liquids within the equipment.The hub radial lateral assembly can be 4 laterals (cross laterals), 6 laterals, 8 laterals, 16 laterals, one layer screen laterals and two layers laterals.

Flange connection hub radial lateral assembly

Hub radial lateral assemblies with four wedge wire screen laterals.

Four branches threaded end hub radial lateral assembly

Hub radial lateral assemblies with six wedge wire screen laterals.

Six branches threaded end hub radial lateral assembly

Six branches threaded end hub radial lateral assemblies

Hub radial lateral assemblies with eight wedge wire screen laterals.

Eight branches threaded end hub radial lateral assembly

Table 2: Hub Radial Lateral Assembly Specifications
No.	Tank Diameter	Hub Pipe and Flange	Laterals Screen Diameter	Laterals Screen Length	Numbers of Laterals
1	40" / 1016mm	3" / DN80	25 mm, 32 mm, 38 mm, 45 mm	300 mm – 400 mm	4–8
2	48" / 1219mm	3" / DN80	32 mm, 38 mm, 45 mm, 57 mm	400 mm – 500 mm	4–12
3	54" / 1350mm	4" / DN100	38 mm, 45 mm, 57 mm, 76 mm	400 mm – 550 mm	8–12
4	60" / 1524mm	4" / DN100	38 mm, 45 mm, 57mm, 76mm	550 mm – 600 mm	8–16
5	72" / 1828mm	5" / DN125	38 mm, 45 mm, 57 mm, 76 mm	600 mm – 800 mm	8–16
6	80" / 2032mm	6" / DN150	45 mm, 57 mm, 76 mm, 89 mm	700 mm – 900 mm	8–16
7	120" / 3048mm	8" / DN200	57 mm, 76 mm, 89 mm, 108 mm	900 mm – 1200 mm	16–20
8	150" / 3810mm	10" / DN300	57 mm, 76 mm, 89 mm, 108 mm	1200 mm – 1600 mm	16–20
Notes: Special specifications are processed and produced according to the user's requirements. We offer perforated pipes interiors the wedge wire screen tube that can withstand high pressure. Material grade 304, 304L, 321, 316L, 310S, 904L, C276, S32205, S32750, Titanium Gr.2

Hub fish spike Lateral Assembly

The structure of hub fish spike lateral assembly differs from the hub radial lateral assembly. It is mainly used for liquid distribution at the top and liquid collection at the bottom of large tanks.

Hub fish spike lateral assembly (bolt connection)

A hub fish spike lateral assembly with wedge wire filter nozzles

Hub fish spike lateral assembly with nozzles

Table 3: Hub Fish Spike or Header Lateral Assembly Specifications
No.	Tank Diameter	Hub Pipe and Flange	Laterals Screen Diameter	Laterals Screen Length (Range from side to middle)	Numbers of Laterals
1	48" / 1219 mm	3" / DN80	32 mm, 38 mm, 45 mm	250 mm – 500 mm	10–12
2	54" / 1350 mm	4" / DN100	38 mm, 45 mm, 57 mm	280 mm – 550 mm	10–16
3	60" / 1524 mm	4" / DN100	45 mm, 57 mm, 76 mm	330 mm – 650 mm	12–16
4	72" / 1828mm	5" / DN125	45 mm, 57 mm, 76 mm	400 mm – 800 mm	12–16
5	80" / 2032 mm	6" / DN150	57 mm, 76 mm, 89 mm	450 mm – 900 mm	12–16
6	120" / 3048 mm	8" / DN200	57 mm, 76 mm, 89 mm	700 mm– 1400 mm	16–24
7	126" / 3200 mm	8" / DN200	57 mm, 89 mm, 108 mm	700 mm – 1450 mm	20–24
8	150" / 3810 mm	8" / DN200	57 mm, 89 mm, 108 mm	700 mm – 1850 mm	20–26
Notes: Special specifications are processed and produced according to the user's requirements. We offer perforated pipes interiors the wedge wire screen tube that can withstand high pressure. Material grade 304, 304L, 321, 316L, 310S, 904L, C276, S32205, S32750, Titanium Gr.2

Header Lateral Assembly

Header lateral assembly is composed of a central header and several screen laterals mounted on both sides of the pipe. It is used in the middle section of the tank to ensure even distribution or collection of liquids within or at the outlet of the vessel. Header lateral assembly can adapt to different process conditions while maintaining high distribution efficiency.

A threaded end header lateral assemblies

Threaded end header lateral assembly

Flange end header lateral assembly

Header lateral assemblies with a perforated tube as screen lateral

Perforated header lateral assembly

Table 4: Hub Fish Spike or Header Lateral Assembly Specifications
No.	Tank Diameter	Hub Pipe and Flange	Laterals Screen Diameter	Laterals Screen Length (Range from side to middle)	Numbers of Laterals
1	48" / 1219 mm	3" / DN80	32 mm, 38 mm, 45 mm	250 mm – 500 mm	10–12
2	54" / 1350 mm	4" / DN100	38 mm, 45 mm, 57 mm	280 mm – 550 mm	10–16
3	60" / 1524 mm	4" / DN100	45 mm, 57 mm, 76 mm	330 mm – 650 mm	12–16
4	72" / 1828mm	5" / DN125	45 mm, 57 mm, 76 mm	400 mm – 800 mm	12–16
5	80" / 2032 mm	6" / DN150	57 mm, 76 mm, 89 mm	450 mm – 900 mm	12–16
6	120" / 3048 mm	8" / DN200	57 mm, 76 mm, 89 mm	700 mm– 1400 mm	16–24
7	126" / 3200 mm	8" / DN200	57 mm, 89 mm, 108 mm	700 mm – 1450 mm	20–24
8	150" / 3810 mm	8" / DN200	57 mm, 89 mm, 108 mm	700 mm – 1850 mm	20–26
Notes: Special specifications are processed and produced according to the user's requirements. We offer perforated pipes interiors the wedge wire screen tube that can withstand high pressure. Material grade 304, 304L, 321, 316L, 310S, 904L, C276, S32205, S32750, Titanium Gr.2

Product Advantages

Choose wedge wire lateral assembly and provide durable, reliable support for your mechanical devices.

High temperature resistance. Excellent stability under high temperatures, and can safely withstand extreme temperatures up to 100 °C and above.
Larger flow area. A wider flow area helps to improve fluid handling efficiency.
Robust construction. It ensures reliability and stability during long-term use.
Customized filtration accuracy. Filtration accuracy can be customized according to specific needs to ensure that the products can meet high-precision filtration requirements in different applications.
Low pressure loss. The product has less pressure loss during fluid transfer, which helps to maintain efficient system performance.
Long lifespan/low maintenance cost. The product has less pressure loss during fluid transfer, which helps to maintain efficient system performance.

Product Application

Wedge wire lateral assembly is used for filtration and screening in drainage applications, and is also widely used in various screening machines.

Rapid and gravity sand filters
Activated carbon vessels
Demineralizers/water softener filters
Ion exchange columns
Pharmaceutical resin treatments
Liquid purification columns

Case Studies

Through customer cases, you can learn our excellent product quality and process in-depth, and feel the quality of wedge wire screen lateral assemblies.

A mounted header lateral assembly placed on the green lawn

Australia

Australian Water Treatment – Wedge Wire Lateral Assemblies

Assembled wedge wire screen water distributor lower distributor

Australia

Australian Wedge Wire Screen Lower Distributor in 100" Vessel

United States

23 Inch Vessel Lateral Water Distributor
