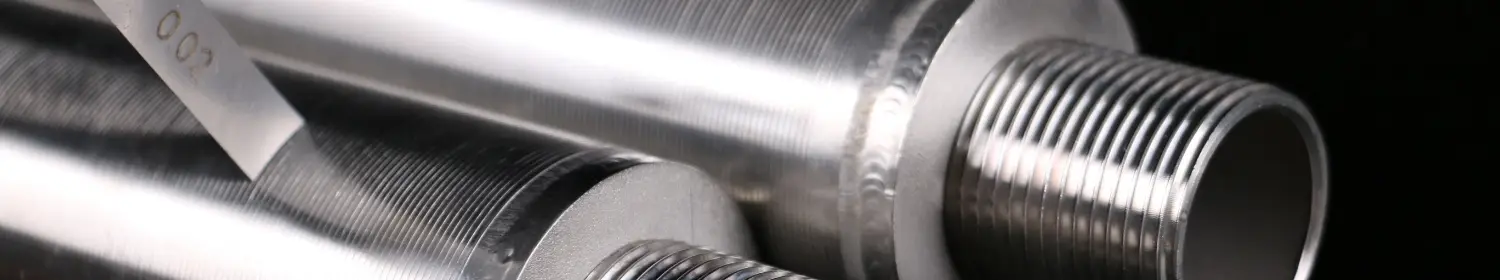

Appropriate Slot Sizes Selection of Wedge Wire Screens

Selecting the appropriate wedge wire screen products based on slot size (also known as slot aspect ratio) is crucial for achieving the desired filtration or separation performance in your specific application. Here are some suggestions to help you select the right wedge wire products based on slots aspect:

Understand your application requirements
Define slot size
Consider slot aspect ratio
Consult with our specialists

A piece of wedge wire flat screen showing the slot details

Understand Your Application Requirements

Determine the specific requirements of your application. It affects the material and slot size selection and you should know the following conditions:

What type of material or particles do you need to filter or separate?
What is the desired flow rate?
What are the temperature and pressure conditions?

Define Slot Size

The slot size refers to the width of the openings or slots between the V-shaped wires on the wedge wire screen. This parameter is crucial for filtration. It is typically measured in microns (μm) or millimeters (mm).

To choose the appropriate slot size, consider the size of the particles you want to separate or filter. Select a slot size that is smaller than the particles you wish to retain.

Here, we list the common used slot sizes for your reference, if you have drawings or detailed requirements, just contact us for additional information.

U.S. MESH	INCHES	MICRONS	MILLIMETERS
3	0.265	6730	6.73
3.5	0.223	5660	5.66
4	0.187	4760	4.76
5	0.157	4000	4
6	0.132	3360	3.36
7	0.111	2830	2.83
8	0.0937	2380	2.38
10	0.0787	2000	2
12	0.0661	1680	1.68
14	0.0555	1410	1.41

U.S. MESH	INCHES	MICRONS	MILLIMETERS
16	0.0469	1190	1.19
18	0.0394	1000	1
20	0.0331	841	0.841
25	0.028	707	0.707
30	0.0232	595	0.595
35	0.0197	500	0.5
40	0.0165	420	0.42
45	0.0138	354	0.354
50	0.0117	297	0.297
60	0.0098	250	0.25

U.S. MESH	INCHES	MICRONS	MILLIMETERS
70	0.0083	210	0.21
80	0.007	177	0.177
100	0.0059	149	0.149
120	0.0049	125	0.125
140	0.0041	105	0.105
170	0.0035	88	0.088
200	0.0029	74	0.074
230	0.0024	63	0.063
270	0.0021	53	0.053
325	0.0017	44	0.044

Consider Slot Aspect Ratio

Slot aspect ratio is the ratio of the slot width to the wire width. It affects the strength and rigidity of the wedge wire screen.

Higher aspect ratios result in narrower slots and can provide better filtration efficiency for smaller particles. However, screens with very high aspect ratios may be less durable. Lower aspect ratios result in wider slots and are more robust but may not filter as finely.

A wedge wire cylinder with light surface and precise dimension.

Consult with our specialist

If you have any doubts, you can consult our experts to provide tailor recommendation according to your applications.
