Wedge Wire Flat Screen with Precision Slot Control
Time: Aug 21, 2026
Scene: Manufacturing industry
Region: Italy
For a solid-liquid separation project, an Italian industrial component manufacturer needed a flat screening element that could be incorporated into its assembly while maintaining precise slot control and structural stability.
The wedge wire flat screen uses V-shaped surface wires welded to support profiles, creating continuous slots across a smooth screening surface. This construction allows liquid to pass through the slots while retaining larger solids and provides a rigid structure for integration into filtration and separation equipment.
Because the customer had strict requirements for the finished component, the panel design went through several rounds of technical review. Particular attention was given to the screen dimensions, slot arrangement, profile orientation, support spacing and connection details so that the final construction matched the surrounding assembly.
After the technical details were fully aligned, the flat screen was manufactured to the finalized design. The completed component achieved the required dimensional fit and screening structure, providing a reliable wedge wire element for the customer's solid-liquid separation system.
Basic Products Specification
- Products: Wedge wire screen panel
- Material: SS304
- Slot size: 0.25 mm
- Wedge wire: 1.8 × 3.7 mm
- Support wire: 3 × 5 mm
- Overall size: 2000 × 2000 mm
- Order code: 3499

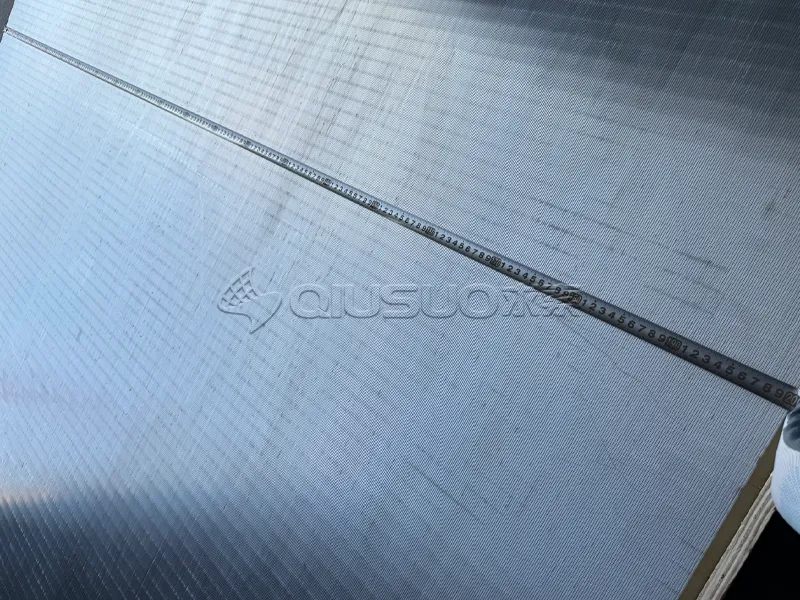

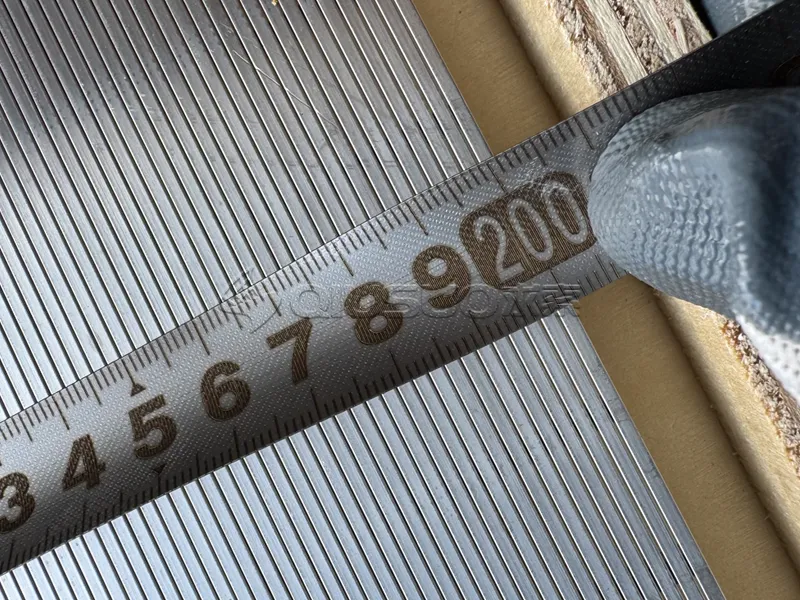

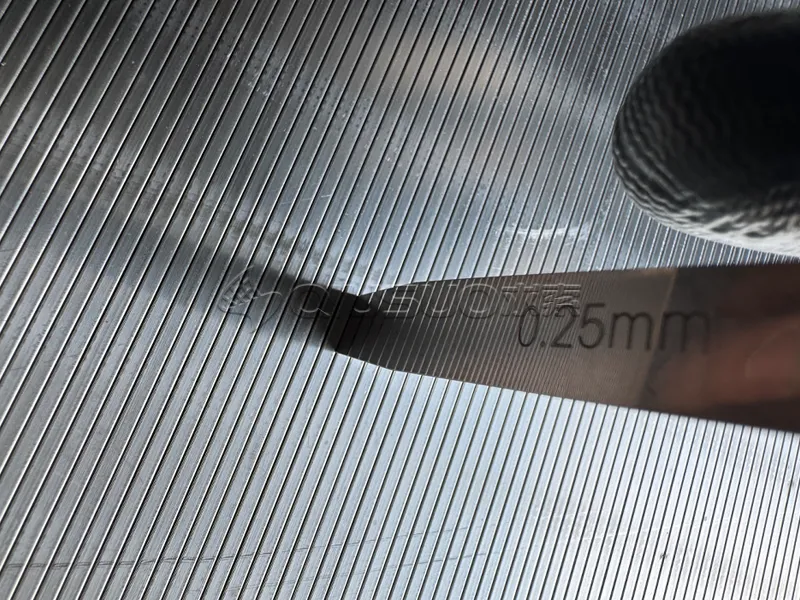

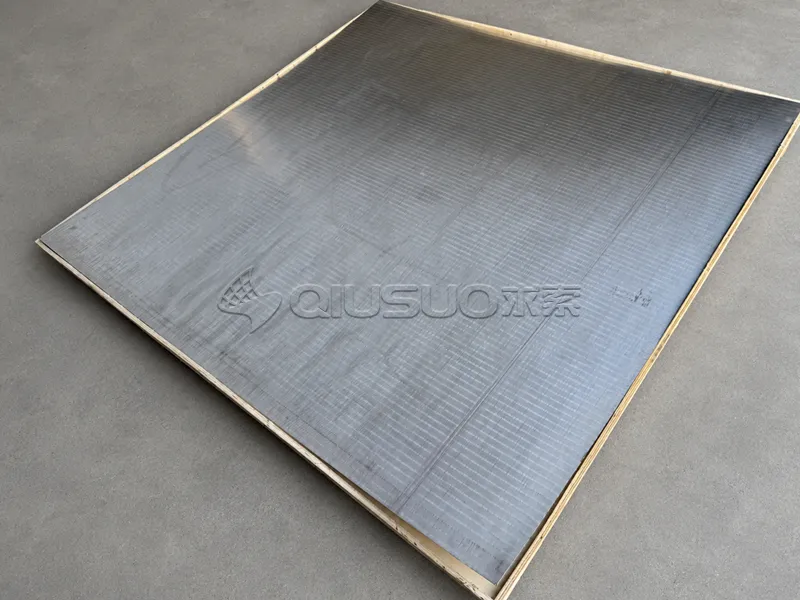

Finished Products & QC Photos
