Wedge Wire Screen Panels – Providing Effective Solid Liquid Filtration

Wedge wire screen panels, also known as wedge wire flat screens, are rectangular wedge wire materials used for filtration. Wedge wire screen panels are manufactured using equally spaced wedge wires and support rods, which as surface profiles are welded onto the support profiles at 90° at each intersection.

Therefore, the shape and characteristics of wedge wire screen panels facilitate the accurate completion of the filtration process by vibration or liquid flow and are suitable for the screening of solids and the filtration of liquids. Smooth surface of the wedge wire screen panels and small slot sizes guarantee precision efficiency. Wedge screen panels support customization in conjunction with usage scenarios, choosing the right slot spacing and support bars for effective filtration.

A wedge wire screen panel on black background.
- QIUSUO Wedge Wire Screen Panels
Type

Wedge wire screen panels are presented in different types to help you identify your target products.

Support Wires

We offer wedge wire screen panels with 5 different types of support rods: triangular (V-shaped, wedge), square wire, round rod, flat bar, and water-drop.

A wedge wire screen panel with triangle bar support rods

Triangle bar support rods

A wedge wire screen panel with square wire support rods

Square wire support rods

A wedge wire screen panel with round bar support rods

Round bar support rods

A wedge wire screen panel with flat bar support rods

Flat bar support rods

A wedge wire screen panel with water-drop support rods

Water-drop support rods

Technical Information
  • Material: Stainless steel 304/316L/321/310S, Duplex steel 2205/2507, Hastelloy, Titanium alloy, etc.
  • Surface profile type: Triangular (V-shaped, wedge) wires.
  • Support profile type: Triangular (V-shaped, wedge), round rod, flat bar, water-drop, and square wire.
  • Slot size: 0.02 mm – 10 mm.
  • Pitch: 10 mm – 100 mm.
  • Surface profile wire length: Up to 3,000 mm.
  • Support profile wire length: Up to 4,000 mm.
SEE MORE + SEE LESS -
Common Specifications of Wedge Wire Screen Panels
Item Slot Size
(mm)
Profile Wire Support Rod
Triangle/Wedge Wire
(mm)
Triangle/Wedge Wire
(mm)
Square Wire
(mm)
Round Bar
(mm)
Flat Bar
(mm)
Water Drop Wire
(mm)
WWSP-01 0.02 0.45 × 1.3
0.5 × 1
0.5 × 1.2
0.65 × 1.3
0.75 × 1.5
1 × 2
1.2 × 2.3
1.5 × 2.5
1 × 2
1.2 × 2.3
1.5 × 2.5
2 × 3
1.5 × 2.5
2 × 2.3
2 × 3
- - -
WWSP-02 0.05 - - -
WWSP-03 0.1 - - -
WWSP-04 0.15 1.5 × 2.5
1.8 × 2.5
1.8 × 3
1.8 × 3.7
2 × 3
2 × 4
2.2 × 3.5
2.2 × 4
2.2 × 4.2
3 × 5
2 × 2.3
2 × 3
2.2 × 5.3
3 × 5
4 × 6
4.2 × 6.5
4 × 7.5
- - -
WWSP-05 0.2 D4
D5
D6
D8
D10
D12
- -
WWSP-06 0.25 1 × 2
1.2 × 2.3
1.5 × 2.5
1.8 × 2.5
1.8 × 3
1.8 × 3.7
2 × 3
2 × 4
2.2 × 3.5
2.2 × 4
2.2 × 4.2
3 × 5
- -
WWSP-07 0.3 - -
WWSP-08 0.4 2 × 25
3 × 25
3 × 8
3 × 10
3 × 12
3 × 15
3 × 20
4 × 25
D3.8 × 5.3
D5 × 6.5
D6 × 8
WWSP-09 0.5
WWSP-10 0.6
WWSP-11 0.7
WWSP-12 0.8 1.5 × 2.5
1.8 × 3.7
1.8 × 2.5
2 × 3
2 × 3.5
2 × 4
2.2 × 3.5
2.2 × 4
2.2 × 4.2
2.5 × 5
3 × 4.5
3 × 4.6
3 × 5
3 × 6
3.2 × 6.2
3.5 × 6
3.5 × 6.5
3.4 × 6.5
3 × 7
4 × 6
4 × 7
5 × 7
5 × 8
1.5 × 2.5
1.8 × 3.7
1.8 × 2.5
2 × 3
2 × 3.5
2 × 4
2.2 × 3.5
2.2 × 4
2.2 × 4.2
2.5 × 5
3 × 4.5
3 × 4.6
3 × 5
3 × 6
3.2 × 6.2
3.5 × 6
3.5 × 6.5
3.4 × 6.5
3 × 7
4 × 6
4 × 7
5 × 7
5 × 8
WWSP-13 0.9
WWSP-14 1.0
WWSP-15 1.5 3 × 5
4 × 6
4 × 6.5
4 × 7.5
5 × 8
WWSP-16 2
WWSP-17 2.5
WWSP-18 3
WWSP-19 4
WWSP-20 5
WWSP-21 6
WWSP-22 7
WWSP-23 8
WWSP-24 9
WWSP-25 10
Advantages

Choose wedge wire screen panels to provide durable, reliable support for your machinery and equipment.

  • Effective filtration
  • Stable filtration accuracy
  • Welded and robust construction
  • Suitable and customizable design
  • High durability, and less maintenance
  • Corrosion resistance
Applications

Wedge wire screen tubes provide accurate, consistent filtration in a variety of industrial processes and as a construction material.

  • Vibrating screen decking
  • Surface water intake screens
  • Fish diversion screen panels
  • Grain drying screen
  • Wedge wire screen for construction
Cases Display

Through client cases, you can learn our excellent product quality and process in-depth, and feel the quality of wedge wire screen panels.

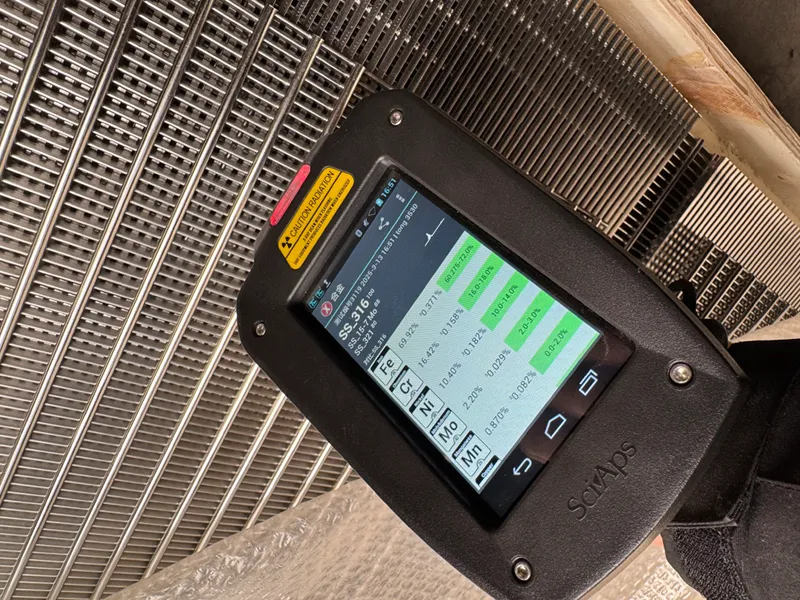

Quality Control
Read More

We are committed to providing superior quality control to ensure that every product meets the highest standards. Learn about our quality control process to ensure you receive a reliable product.
