Wedge Wire Screen Cylinders for Process Filtration Projects

A trading company serving the sugar, starch and industrial filtration sectors required customized wedge wire screen cylinders for its project supply needs. The order involved cylindrical screens manufactured to specific dimensional and structural requirements for screening and filtration applications.

At the technical confirmation stage, we worked through the cylinder diameter, overall length, slot size, support arrangement and end connection details. Each point was reviewed in relation to the intended installation, ensuring that the final construction followed the agreed order specifications.

Production and delivery were arranged according to the confirmed order schedule. Before shipment, the main dimensions and structural details were checked against the agreed requirements. The completed wedge wire screen cylinders were then packed and delivered for the buyer's filtration projects.

• Product: Wedge wire screen cylinders
• Material: SS304
• Slot: 0.5 mm
• Screen wire: 2 × 4 mm
• Support wire: 4.2 × 6.5 mm
• Height: 500 mm
• Inter diameter: 465 mm / 280 mm
• Quantity: 5 pcs
• Order code: 8128

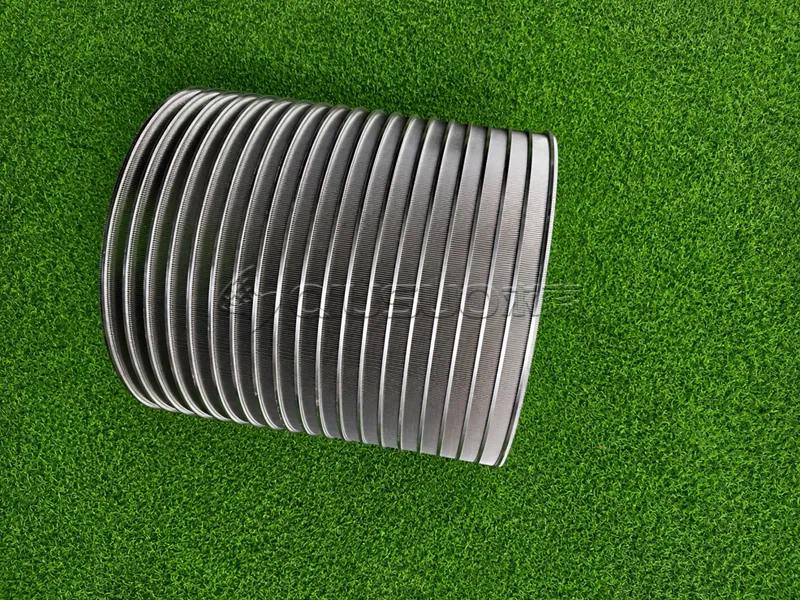

Product display

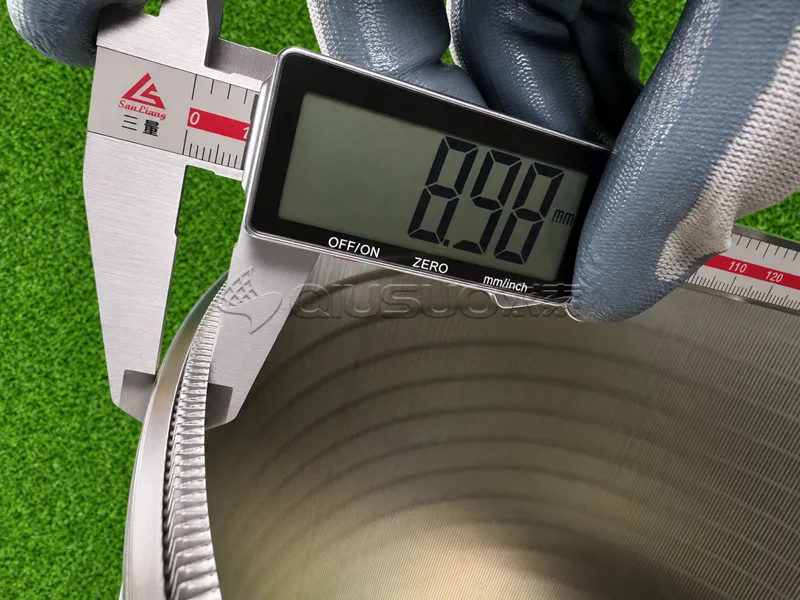

Thickness detection

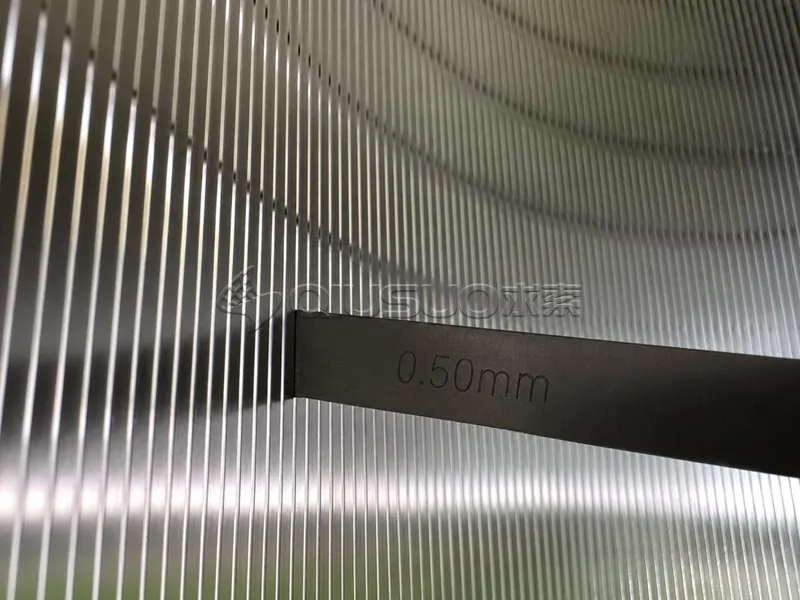

Slot opening detection

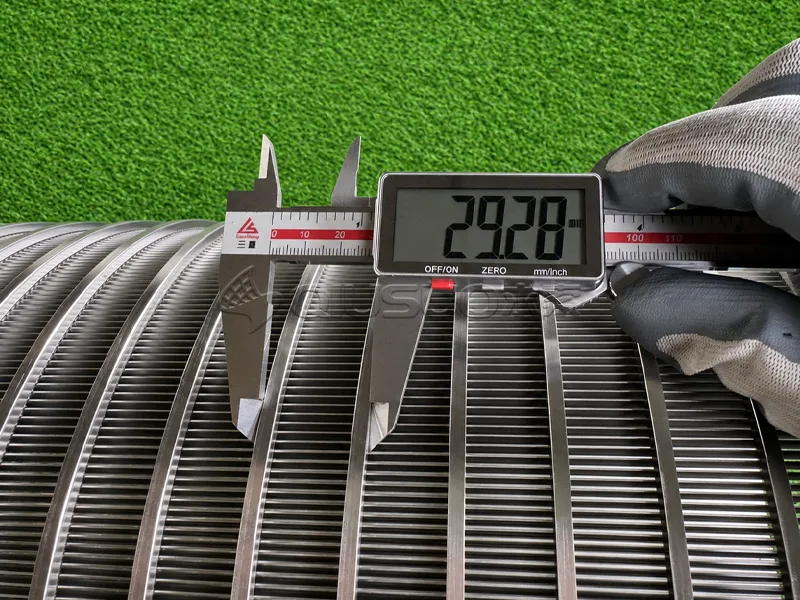

Support rod spacing measurement

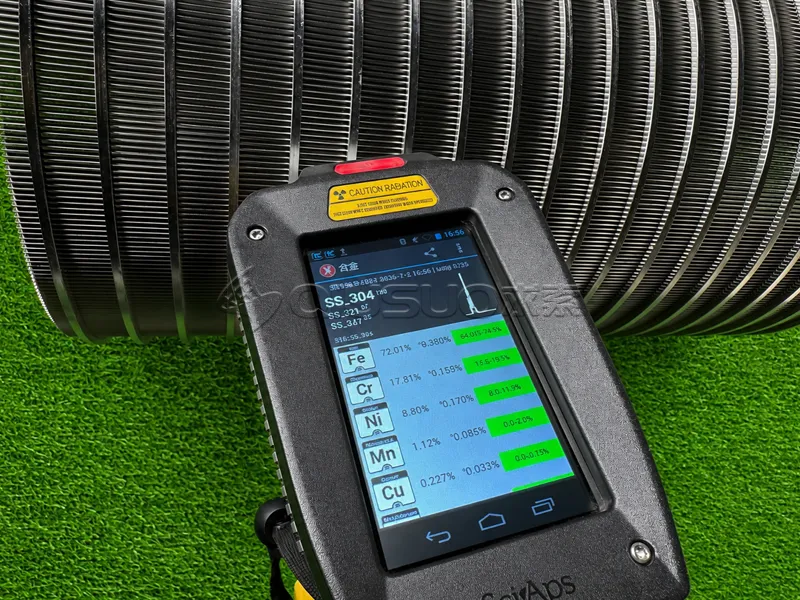

PMI test

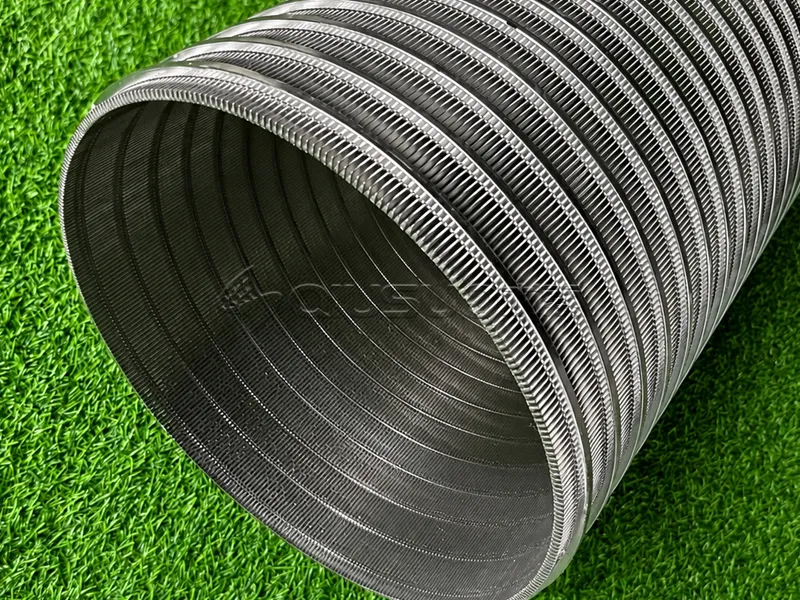

Product details

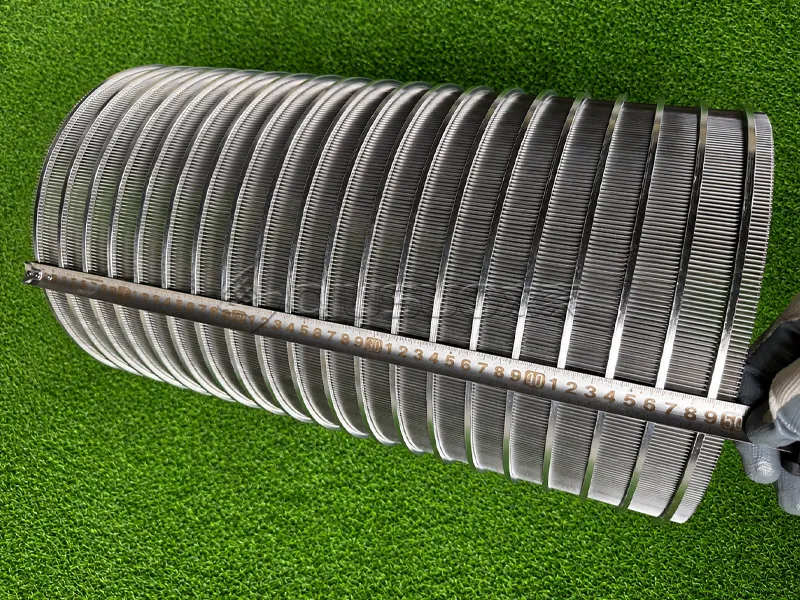

Height measurement

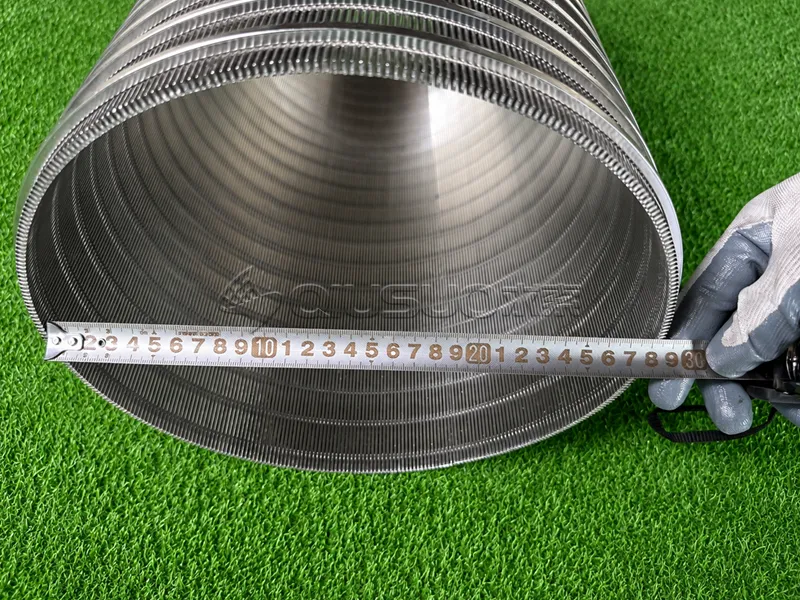

Inter diameter measurement
