0.1mm Stainless Steel Wedge Wire Screen Cylinders for Industrial Filtration

Time: Oct 12, 2024 Scene: Wedge wire screen Region: Thailand

Wedge wire screen cylindersare a filtration accessory used in heavy-duty equipment and have a larger aperture than wedge wire screen tubes. When compared to conventional slotted pipe, wire wrapped wedge wire screens have superior open areas due to their continuous slot openings.

Their flexible design allows for customization in size and aperture, making them suitable for various applications. Additionally, they provide high flow capacity, enhancing fluid dynamics and minimizing pressure loss, making them an efficient choice for industrial filtration processes.

The customer provided us with product measurement photos, and based on the information they supplied, we created drawings for their confirmation. After several discussions, the drawings were ultimately approved by the customer.

Basic Information and Specification
  • Company: An industrial filtration company
  • Country: Thailand
  • Products name: Wedge Wire Screen Cylinders
  • Material: Stainless steel 304
  • Slot: 0.1mm
  • Profile wire: 3×5mm
  • Support rod: 3×5mm, pitch: 22mm
  • Support ring: 9×9mm
  • Flange OD: 530mm
  • Overall length: 600mm
  • Remark: Details are produced according to the drawings
  • Quantity: 6 pcs
Finished Products Photo & Packing

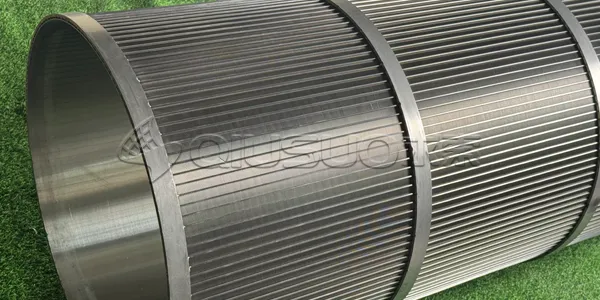

A production completed wedge wire screen cylinders

0.1mm screen slot

3mm back profile wire

530mm screen outside diameter

600mm screen length

Six screen cylinders in a wooden box

Applications
  • Water Treatment. Widely used in municipal and industrial water treatment facilities as a pre-filter and in wastewater treatment systems.
  • Oil and Gas. Used for separating liquids and solids, commonly applied in production and processing in oil and gas fields.
  • Mining. Provides efficient filtration and separation in ore screening and slurry processing.
  • Food and Beverage Industry. Used for filtering liquid products such as beer, juice, and dairy, ensuring product purity.
  • Chemical Industry. Applied in the separation and filtration of chemicals, ensuring product quality and compliance with industry standards.
