Hastelloy C276 Intake Screens for Seawater Treatment in the United States

An American customer required a seawater intake screens for a marine water treatment project. Owing to the highly corrosive environment, Hastelloy C-276 was specified for its exceptional resistance to pitting and crevice corrosion, ensuring long-term durability. The screen was then custom-designed and manufactured to precise dimensions based on approved shop drawings.

This intake screen is engineered with 5 mm slots to optimize water flow and effectively block debris. Constructed from Hastelloy, it ensures reliable performance in highly corrosive environments. Meanwhile, the ANSI B16.5 #150 flange connection allows for easy installation and integration with existing pipelines. Through reinforced design and strict quality control, the screen delivers consistent, long-term operational stability.

This product is well-suited for seawater treatment and desalination plants, where durability and filtration efficiency are critical. By combining corrosion resistance, custom engineering, and reliable performance, the Hastelloy C276 intake screen ensures smooth water intake and long service life for marine applications.

• Company: A sewage treatment company
• Country: America
• Products name: Intake screens
• Material: Hastelloy C276
• Slot size: 5 mm
• Length: 600 mm
• Flange O.D.: 280 mm
• Flange standard: 6" ANSI B16.5 #150
• Remark: Details confirmed according to final approved shop drawings
• Quantity: 2 pcs
• Order code: 2527

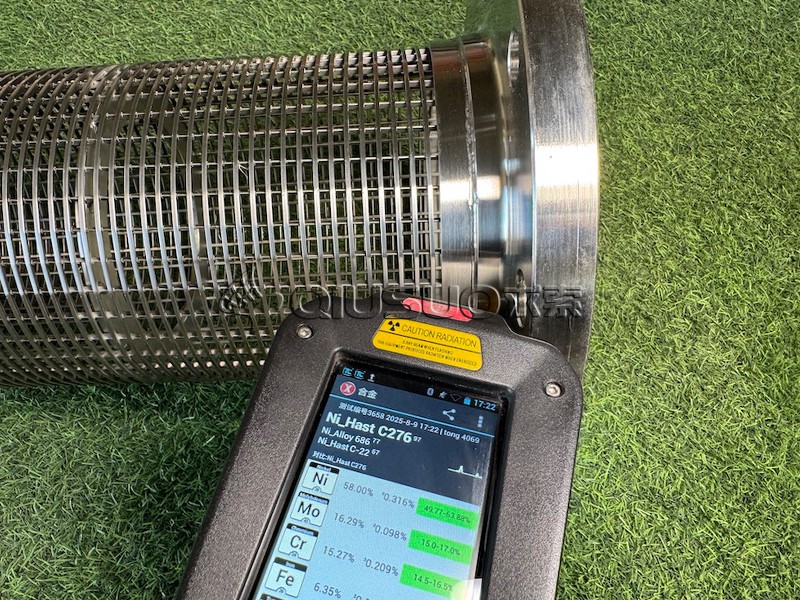

PMI test

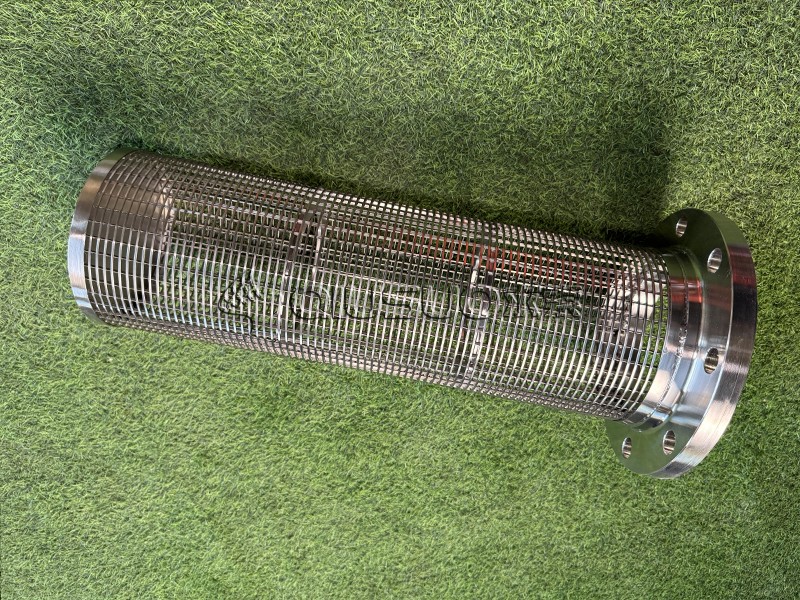

Finished product display

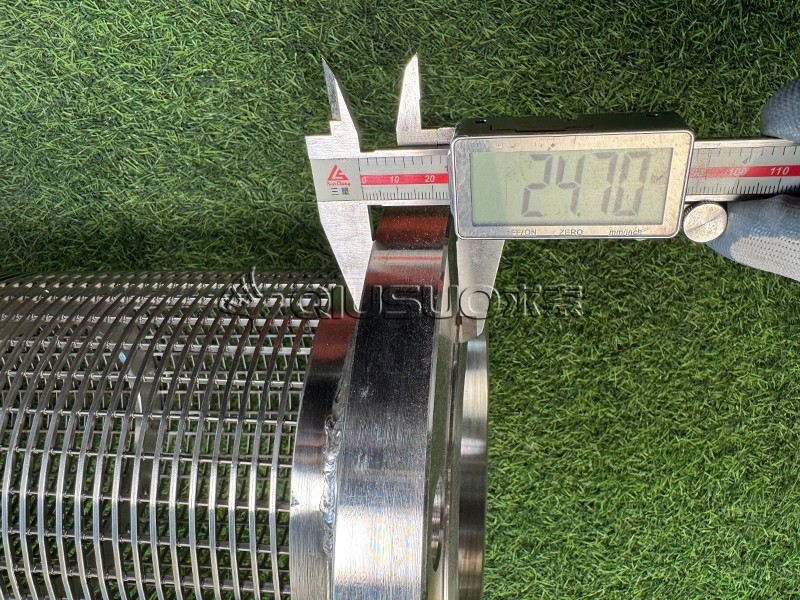

Flange thickness inspection

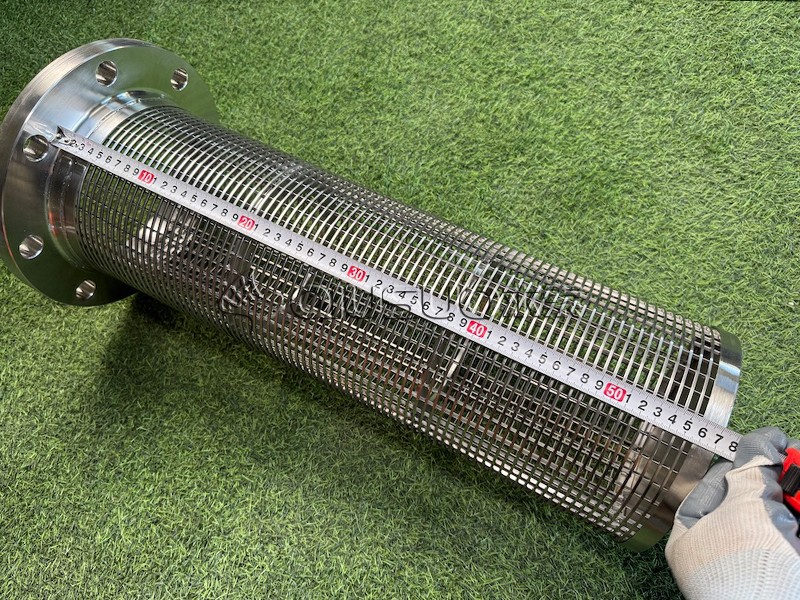

Length measurement

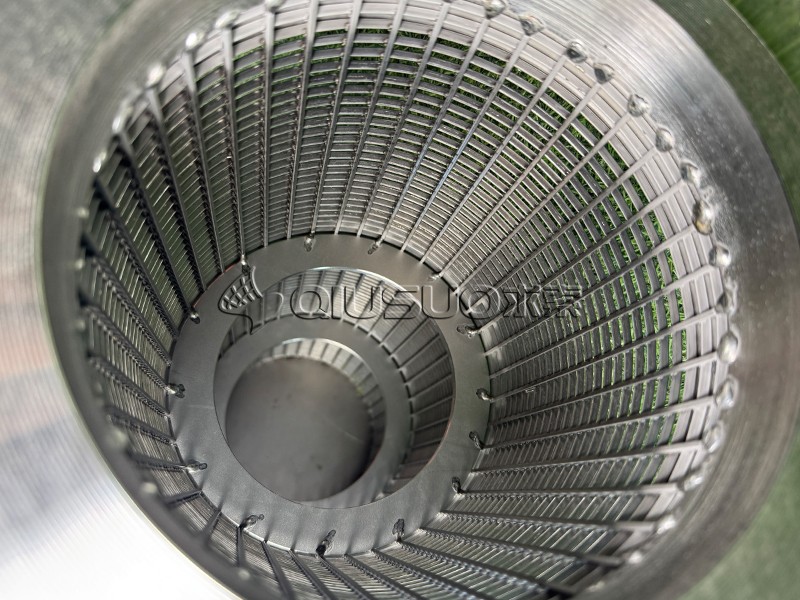

Visual inspection internal reinforcing strips

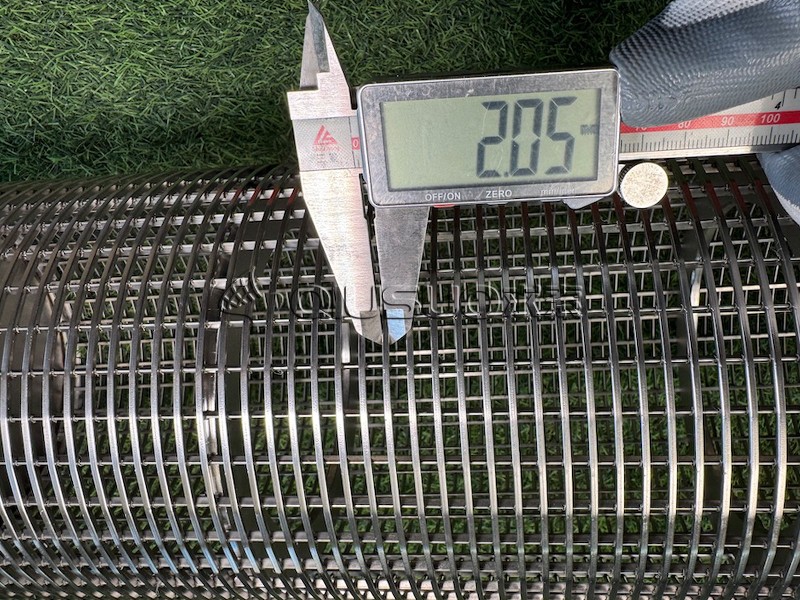

Screen wire back width measurement

Intake screens are well-suited for seawater treatment and desalination plants, where durability and filtration efficiency are critical. Our expertise in working with various metals and alloys ensures that the products we supply can withstand different environmental conditions.
