SS304 Wedge Wire Lateral Assemblies High Efficiency Filtration

We provide tailor-made wedge wire lateral assemblies for Indonesian clients, specifically designed for water treatment systems to deliver exceptional filtration performance and uniform fluid distribution. The assemblies are constructed with high-strength stainless steel wedge wire, offering corrosion resistance, high compressive strength, and clog-resistant properties, ensuring efficient and stable operation in water treatment processes. Whether for ion exchange, filter vessels, or other water treatment applications, we deliver precisely customized solutions tailoredg to customer requirements.

• Company: A water treatment company
• Country: Indonesia
• Products: Wedge wire lateral assemblies
• Material Grade: SS304
• Wedge Wire Screen Screen slot: 0.1 mm
• Flange: ANSI 4" 150# flanges
• Hub header pipe: 4", length 8"
• Branches: 8 pcs of wedge wire screen laterals, 2" diameter.
• Flow Rat: 40 gpm

Branch pipe diameter inspection

Flange bottom diameter inspection

Hub header pipe details

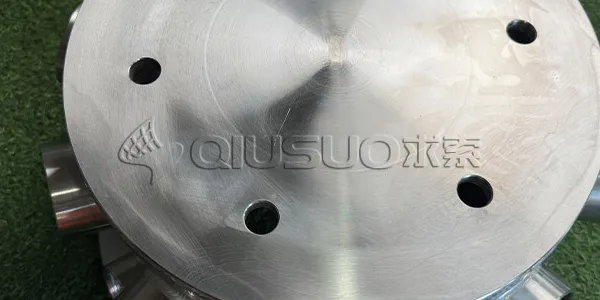

Mounting hole inspection

PMI test

Thick flange inspection

Overall display
