Custom Sieve Bend Screens for Dairy & Food Processing Systems

An Argentine company specializing in dairy and food processing equipment required wedge wire sieve bends for integration into one of its equipment projects. As the customer operates as an equipment manufacturer and technical service provider, the screen construction was developed around the confirmed equipment dimensions and installation requirements.

The curved wedge wire screening surface combines continuous slot openings with a rigid supporting structure. This design provides a large effective screening area and is suitable for screening, sizing and dewatering duties in food-processing and other industrial systems.

For this project, the key details included the material, slot opening, screen width, arc dimensions, profile wire arrangement, support structure and connection configuration. These parameters were coordinated to match the required curved profile and ensure proper integration with the surrounding equipment.

The finished wedge wire sieve bends provided a customized screening component that could be incorporated into the customer's dairy and food processing equipment according to the confirmed project requirements.

• Product: Wedge wire sieve bends
• Material: SS316L
• Screen slot: 0.05 mm
• Profile wire: 0.5 × 1.25 mm
• Support wire: 2 × 3 mm
• Total length: 870 mm
• Screen width: 325.99 mm
• Screen radius: R350 mm
• Overall height: 178.48 mm
• Quantity: 6 sets
• Order code: 5211

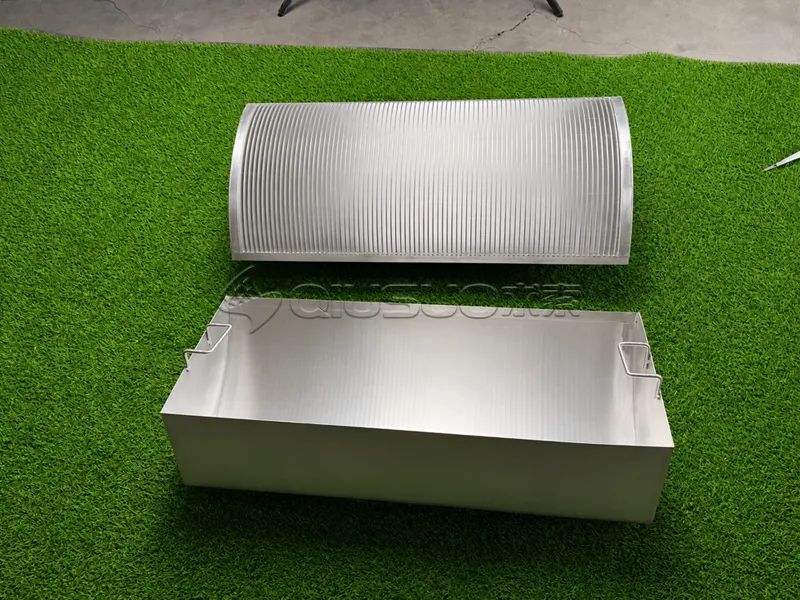

Product display

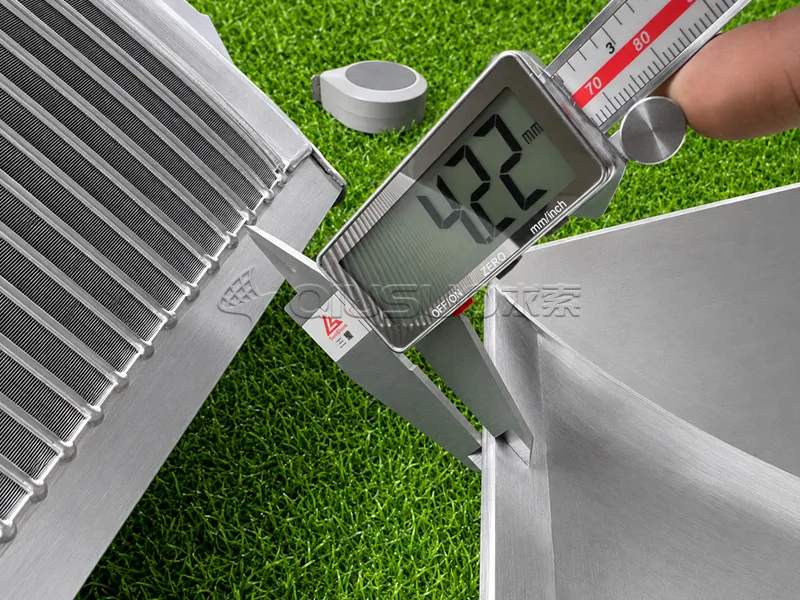

Thickness measurement

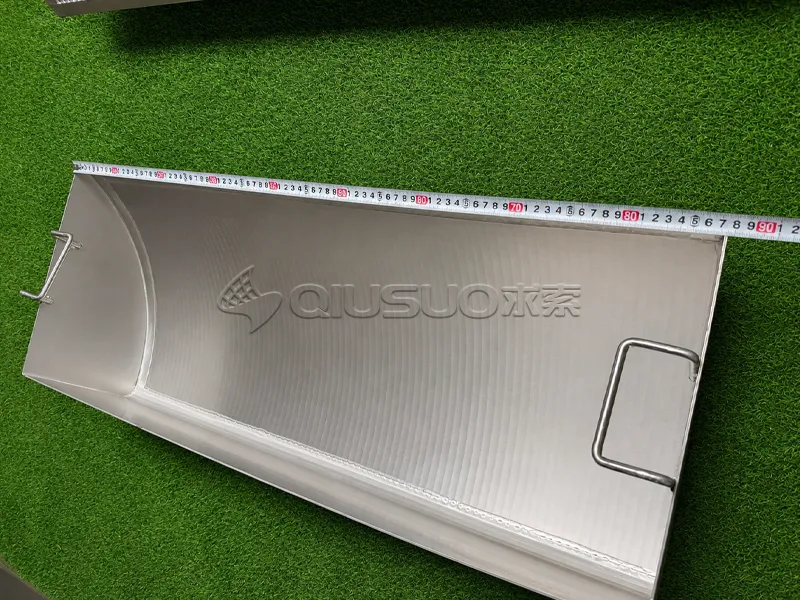

Length measurement

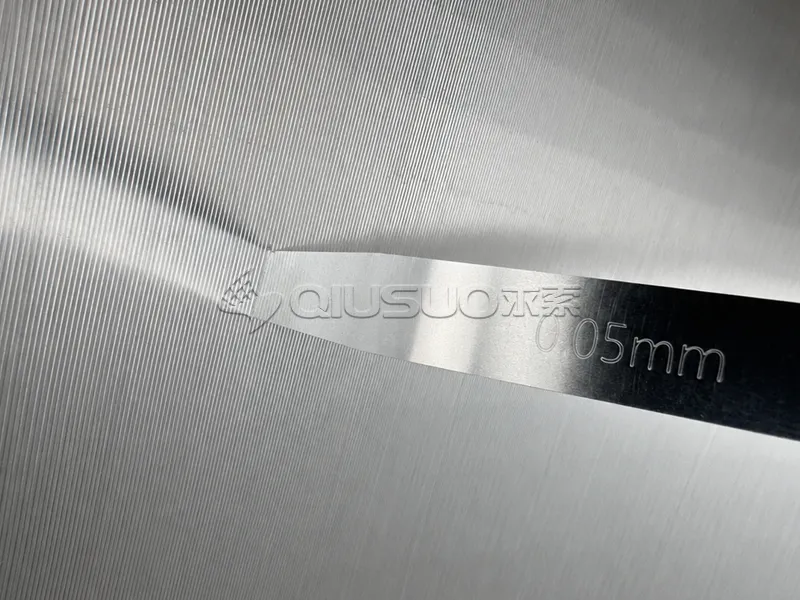

Slot measurement

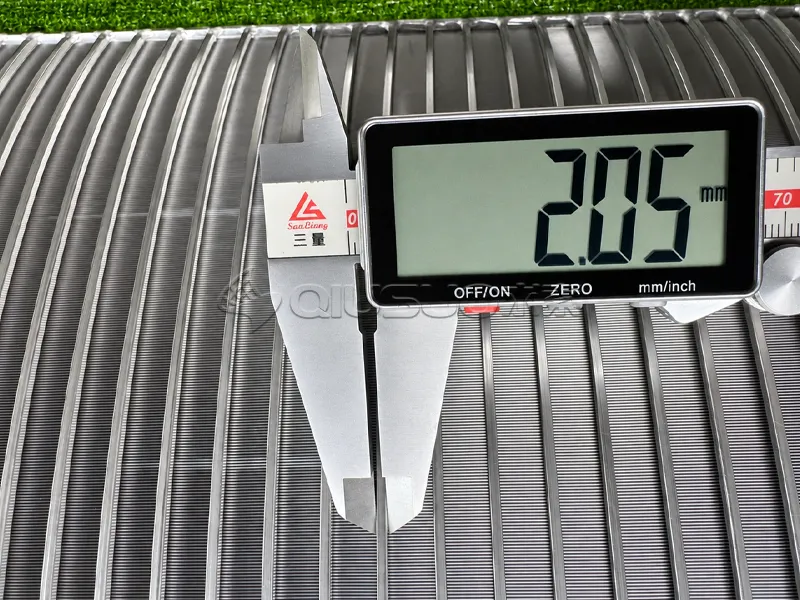

Support rod measurement

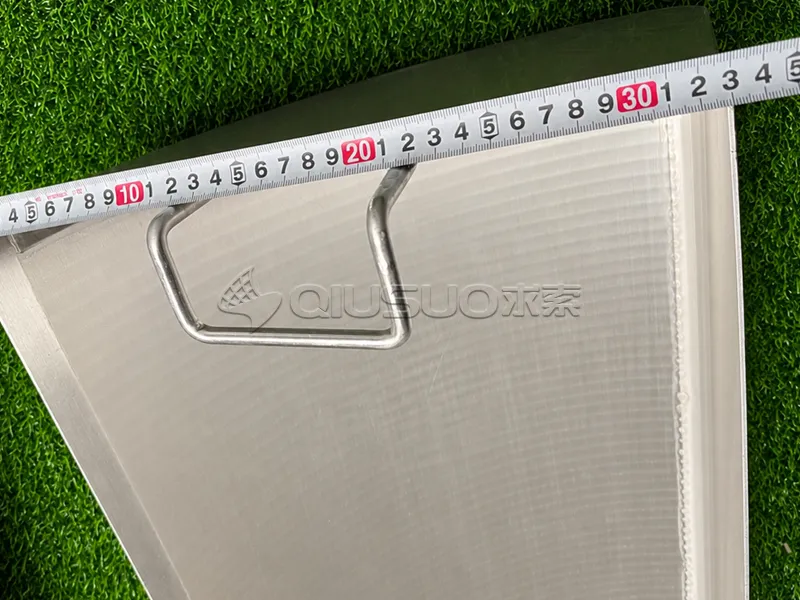

Width measurement

PMI test

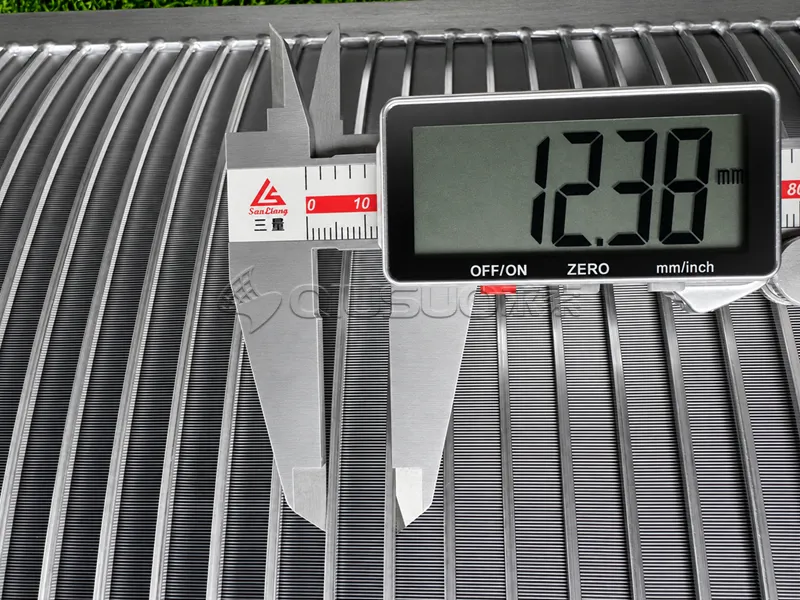

Size measurement
